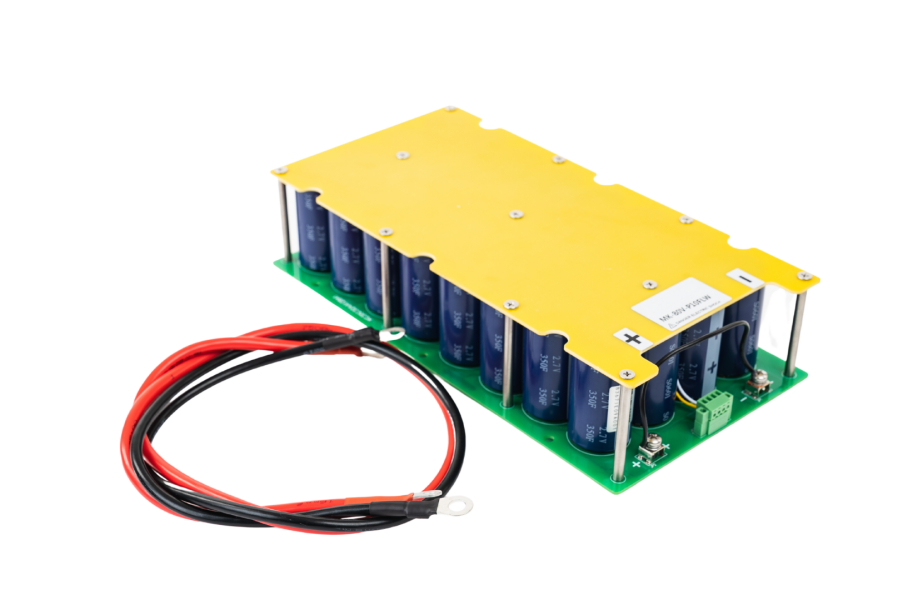

Ultracapacitor bank (80V 10F)
Discover the cutting-edge Ultracapacitor Bank 80V 10F by Horizon Educational. Designed for renewable energy projects and educational setups, this high-capacity energy storage solution supports advanced experimentation and learning. Ideal for integration with fuel cells and hybrid energy systems, it empowers researchers, educators, and students to explore sustainable technologies. Shop now and elevate your technical education and renewable energy projects.
| Item | Specification/Condition |
|---|---|
| Part number | MK-80V-P10FLW (350F-32C1B-LW) |
| Rate discharge capacitance | 10F |
| Capacitance tolerance | -10% to +30% |
| Working voltage | 0V to 80V |
| Rated voltage | 80V |
| Absolute maximum voltage | 86.4V |
| Working current | 0A to 35A |
| Rated current | 35A |
| Maximum peak currrent, 1 second (non repetitive) | 200A |
| Operating temperature range | -40°C to +70°C |
| Equivalent series resistance | 50mΩ at 1000Hz |
| Balancing voltage type | Equipped with equalizing circuit |
| Shell packing | Metal shell |
| Output type | Wire |
| Weight | 3040g |
| Dimensions | 315x165x72mm |
